Descriere

Mini PC ASRock NUC cu procesor generatia 11th Intel® Core™ i7-1165G7 pana la 4.70 GHz, Tiger Lake, fara RAM, fara stocare, Intel® Iris® Xe Graphics

Form Factor

Dimensions	110 x 117 x 48 mm

Processor System

CPU	i7-1165G7, QC, Max Speed up to 4.7GHz
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
HDMI	HDMI 2.0a Max resolution up to 4096×2160@60Hz
DisplayPort	DisplayPort 1.4, DP++ Max resolution up to 4096×2160@60Hz
MultiDisplay	Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
WLAN	1 x Intel® Wi-Fi 6 AX200 module

Audio

Interface	Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Front I/O

USB	1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output) * USB4™ Compliance Test is pending for certification * For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack)

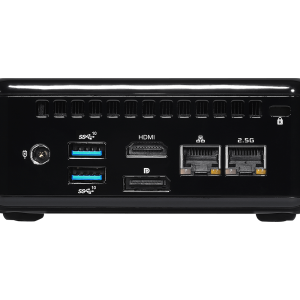

Rear I/O

HDMI	1 x HDMI 2.0a
DisplayPort	1 x DP 1.4
Ethernet	1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB	2 x USB 3.2 Gen2 (Type-A)
DC Jack	1

Storage

M.2	1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, …255sec

Power Requirements

Input PWR	19V/90W Power Adapter
Power On	AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 40ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Mechanical

Construction	Plastic
Mounting	VESA mounting
Dimensions (W x H x D)	110.0 x 117.5 x 47.85mm
Weight	Net Weight:1.0Kg

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket
Longivity Support	No

Accessories

Gift Package	2 x SCREW M2*2,D=5 (13G020302034AK) 1 x NUT M2 H=3.35mm (13G020271010AK) 1 x AC PWR CORD (14G110000212AK) 1 x NUC BOX-TGL SERIES QIG (15G06M098000AI)
